CH570 End of Row Feature Setup and Adjustment

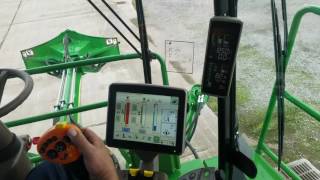

I'm going to do a short video clip explaining the end of row feature on a CH570 vehicle. I'll review how to configure the end of the rule, activate and adjust it. To get to the end of the row page, you need to go to your second sugar page. So go here two out of three and then go press your D icon, which is your floating crop dividers. Then you press the H icon, pop the bottom end of the roll page. You can enable either your base cutter or your base cutter and your crop dividers or just your crop divides however you want the end of the row setting to be. So if I put a checkbox in above all three of them, all three of them will end of the rows will be enabled. So in order to set your end of the row, this is your end of the row settings right here. So if I machine to 84 and I bring my crop dividers, let's just say a little bit less than max and I hit capture, it captures my left crop divider height, it captures my right crop divider height, and it captures your base cutter, which is 84. So this is the settings you'll bring your machine to at the end of the row. So if I go back to my regular home page. If you want to, there's a couple different ways to bring your machine to the end of the rope settings. Lower my crop routers. I'm below my base cutter, so if I want to bring my machine to the end of the row base cutter, I can hit the double detent on the base cutter switch, which it turns yellow and it gets to the end of drill set. So if you notice, we have 80 in brought it to 82 and we were set at about 84, so it brought it pretty close to what we had set for the end of the row. So if you want to bring your crop divider to the end of the row, you can either double click on the upper, either the left or the right. It brings them both up no matter which one you you press. There's also other ways to activate end of the row, which is end of the row two crop dividers. Or you can hit all up. Either one of those will bring this will bring just your crop dividers into the row. This will bring your base cutter and your crop dividers to the end of the row. So bring my base cutter back down my crop the bottom and I hit the number one configurable button, it brings both my crop dividers to the end of the row. You typically use that one whenever you have high headlands and you want your crop dividers that come up before your base cutter. The second one is if you have all up, which if you have kind of a flat headland, you just want to press one button, then you can just hit two. You'll bring your machine and you cup the bottoms up to the end of the row setting. If you don't like the double detent here and you just want to use the all up, you can disable the end of the row double detent on your base cutter. You can do that by going to your message center and then go to addresses G. Takes a few seconds for it to come. Then you go down to IHU, you find address 64 and you click on it. You have a 1 in the checkbox right now. If you put, you change that 1 to a 0 address 64 from 1 to 0. Now if I go back home, you want to close diagnostics, go back to your sugar page. So now when I go and I hit my machine down, the double detent no longer works. Some people like the double detent to work. Some people accidentally hit it while they cut and if they want to bump up a little bit, they hit the double detent and the whole machine raises to the end of the row. So if you want to disable it, that's how you disable it. And you can, then you can just use your end of the row configurable buttons on you here.
