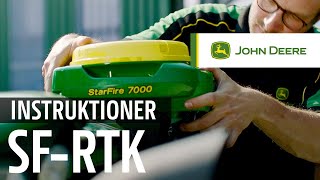

This is a YouTube video titled "Hur man uppgraderar till SF-RTK" created in February 2024. It features Francisco Jimenez providing a detailed instructional guide on how to upgrade Starfire 7000 or 7500 receivers to the SF RTK autotrack guidance system, explaining the activation process and system settings for improved accuracy and signal stability.
If you have a Starfire 7000 or Starfire 7500 receiver, you can easily upgrade your autotrack guidance system to RTK without the need for additional hardware. You simply have to request an SF RTK activation code at your local dealer. With RTK you gain 2.5 cm pass to pass accuracy and improved signal stability. In this video we will show you how to activate SF RTK in your Command center. From your Main Run page, navigate to the main menu on the left hand side. You find Machine Settings, Applications and System Settings. Click on Applications, select the Isobus VT icon in the shortcut bar. Go to the License Type tab and select the License button on the right. Now you need to enter the activation code received from your dealer. By accepting the arrow button. You have activated SF RTK and see the information that the license validation was successful. To switch the Correction mode to SF rtk, close the pop up by pressing the arrow button. Now go back to the Setup menu by clicking on the Setup tab in the Shortcut bar. Click on the Field Correction mode and select SF rtk. If you want to have an overview of your RTK signal, you can check out all information under the Info tab in the Shortcut bar. Congratulations. Your Starfire receiver with SF RTK signal is now ready to go. Close the Isobus VT window by clicking on the X. Leave the Applications overview to get back to your main Run page. You can also find your Receiver settings by clicking on the Status center in the top right hand corner. In the Status center, click on the row with the Starfire receiver and you're there.
