John Deere Water F3300. Filtro automático de malla John Deere Water.

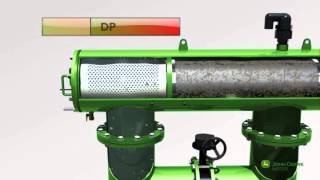

The advanced self cleaning Mechanism of the F3300 filter is made up self adjusting suction nozzles. A reinforced multi layer stainless steel sintered screen for optimal and long lasting filtering. A reversing unit that moves the complete cleaning mechanism back and forth in a cyclic motion, and a core screen for initial filtering of large particles as well as filter protection. The assembly is smoothly inserted into the filter body through the opening used for maintenance. The filter is equipped with an electric motor that sets the self cleaning mechanism in motion. Now let's take a look at how the F3300 filter mechanism works. The water is filtered through the coarse screen, flowing directly into the fine screen chamber. As the water passes through the fine screen, dirt particles begin to accumulate on its inner surface. When the pressure differential on the screen reaches a preset level, the automatic cleaning process is activated. The flushing valve opens and the electric motor rotates the suction nozzles. The nozzles sweep the screen in a spiral movement, sucking in the dirt from the entire screen surface. The dirt is evacuated to the flushing chamber and through the flushing valve to the drainage pipe. The reversing unit assembly enables an effective and continuous back and forth cleaning operation over an extended period of time. F3300 automatic self cleaning screen filter for efficient and reliable filtering.
