Seth walks through the John Deere Z900M series zero turn mower, covering solid front tires, deck design, fuel tank capacity, deck height adjustment, fold-down roll bar, and engine specs. A product demo focused on commercial-grade features and how to use them.

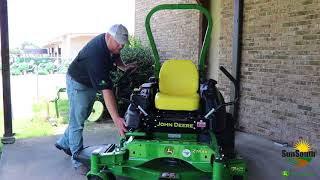

I'm Seth with SunSouth. Today I want to go over a couple features on our Z900M series mowers. This is a Z920M with a 54 inch deck. So starting out we'll go over. You got the solid front tires, so you got solid rubber. You don't ever have to worry about getting a flat tire in the front or knocking the front off if you're doing commercial cutting, going over curbs or anything. So you got a good solid tire there. You also have the seven iron deck. Like I said, this is a 54 inch deck. You have a step here on the side for easy access to the seat and the operator's area so you don't have to try to step over and fall. And like I said, seven iron deck, you got a good thick, sturdy deck. Next feature you have on the nine series and most of your commercial series you're going to have an 11 and a half gallon tank. So for commercial guys who are doing a lot of cutting in a day, don't have to stop and worry about keeping the tank full or keeping extra gas can you got 11 and a half gallons so you can get through a full day with cut most of the time. Next feature you have come around on this side. Some of the features on the deck height adjuster, it is a foot lift deck system. So you have a foot pedal here and some linkage that goes under to a spring assisted deck. So it's pretty easy. You're not picking up the whole weight of the deck. You have a dial indicator here so you have increments from one one and a half all the way up to five and a half. And those are pretty close to an inch mark to get your cut height. There's plenty of choices there depending on which yard you're in. You also have a lock feature on it where you can lock it into transport. So if you're cutting at your house, set your height. Next time you come out, it'll already be set. All you'll have to do is hit the unlock and the deck will go down to the proper adjustment. Then we'll come around to the motor side.
Alright.
Next we'll kind of show you the.
Fold down roll bar. All your commercial mowers come with your roll bar roller protection system. There is options. If you have some trees in your yard, you can pull some pins and the roll bar will fold back. Now for safety we recommend keeping the roll bar up at all times. But there is instances where you need to sled it down. You can also get a sunshade canopy for it for those long hot days.
Next, we'll look at the engine on.
The M series mowers. You get a Kawasaki engine. This particular one is a 23.5 horsepower. All your service stuff is very easy.
And simple to get to.
You have your air filter box here. Your oil filter and oil is down here where you can insert oil and check your dipstick. You can also lift the seats on your commercial mowers to get to the battery. So for easy if you ever need to change the battery or handle anything under the seat with the hydraulic oil you can get down here. This is also that spring for the deck lift I was talking about. Kind of helps take the weight off the deck and lift it so it's an easier lift system.
